รายละเอียดสินค้า :
Feature | Code | Description |
---|---|---|
SEAL TYPE | _ | (0) STANDARD O-RINGS (VITON) |
VALVE TYPE | DG | (DG) DIRECTIONAL CONTROL VALVE WITH SUB PLATE MOUNTED |
OPERATION | 4 | (4) SOLENOID OPERATED |
PRESSURE RATING | V | (V) 315 BAR AT PORTS A, B AND P |
INTERFACE | -5 | (5) ISO-4401 SIZE 05 |
SPOOL TYPE | -6 | (6) P BLOCKED, A & B TO T |
SPRING ARRANGEMENT | C | (C) SPRING CENTERED. DOUBLEEND. |
BUILD ORIENTATION | _ | (0) STANDARD BUILD |
SPOOL SHIFT CONTROL | J | (J) NOTCHED SPOOL ( JUST FOR DC MODELS ONLY, EXCEPT 0A SPOOL ) |
MANUAL OVERRIDE | _ | (0) PLAIN OVERRIDE IN SOLENOID ENDS ONLY |
SOLENOID IDENTIFICATION | -M | (M) FLAG WITH STANDARD BUILD AS PER ANSI B93 9 |
SPOOL MONITORING SWITCH | _ | (0) NO SPOOL POSITION MONITORING SWITCH |
COIL TYPE | -U | (U) ISO4400, DIN43650 CONNECTOR |
COIL VOLTAGE | -H | (H) 24 VDC 38 WATT |
TANK PORT RATING | 6 | (6) 160 BAR TANK PRESSURE RATING |
DESIGN CODE | -20 | (20) DESIGN NUMBER |
SPOOL DAMP ORIFICE | _ | (0) OMIT IF NOT REQUIRED |

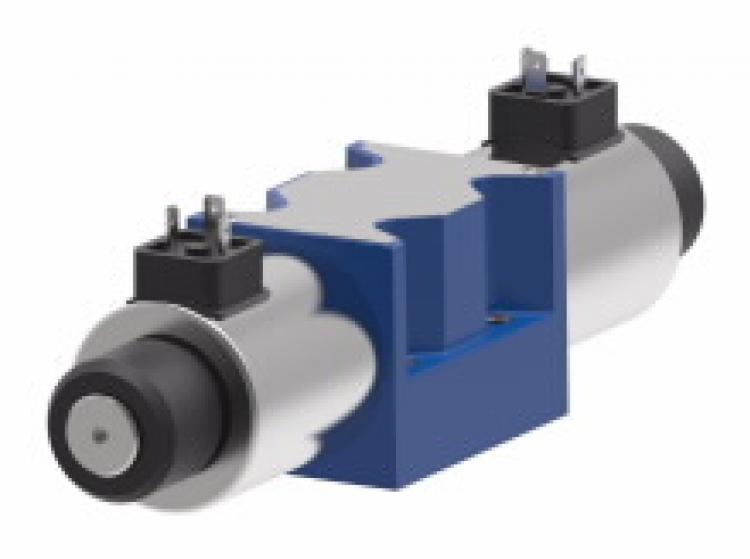

Vickers DG4V 5 6CJ M U H6 20
- Brand: Vickers
- Product Code: 616780
- Availability: In Stock
Short Description
Tags: vickers
